LED Diffusers & Acrylic Components

Covers, shades, backlit panels, lamps. Professional lighting components.

Request a Quote

LED Elements - Lighting Components

We offer professional acrylic elements for LED lighting. Our shades, covers, and panels ensure ideal light diffusion and aesthetic appearance. We work with lighting manufacturers and architects.

Why Choose Our LED Elements?

🌈

Perfect Diffusion

Even light distribution without hot spots

💡

High Transmittance

Up to 90% light transmission

☀

UV Resistance

No yellowing for 10+ years

🔆

Multiple Diffusion Levels

30%, 50%, 70% - matched to application

📐

Precision Dimensions

Tolerance +/-0.05mm

✂

Custom Made

Every element to your specification

Types of LED Elements

LED diffuser covers acrylic light diffusion

LED Covers (Diffusers)

Covers for LED strips and modules. Various diffusion levels.

Acrylic shades lighting fixtures

Shades

Shades for lighting fixtures. Snap-in or slide-in mounting.

Backlit panels acrylic edge-lit

Backlit Panels

Panels for backlighting. Thin and uniform illumination.

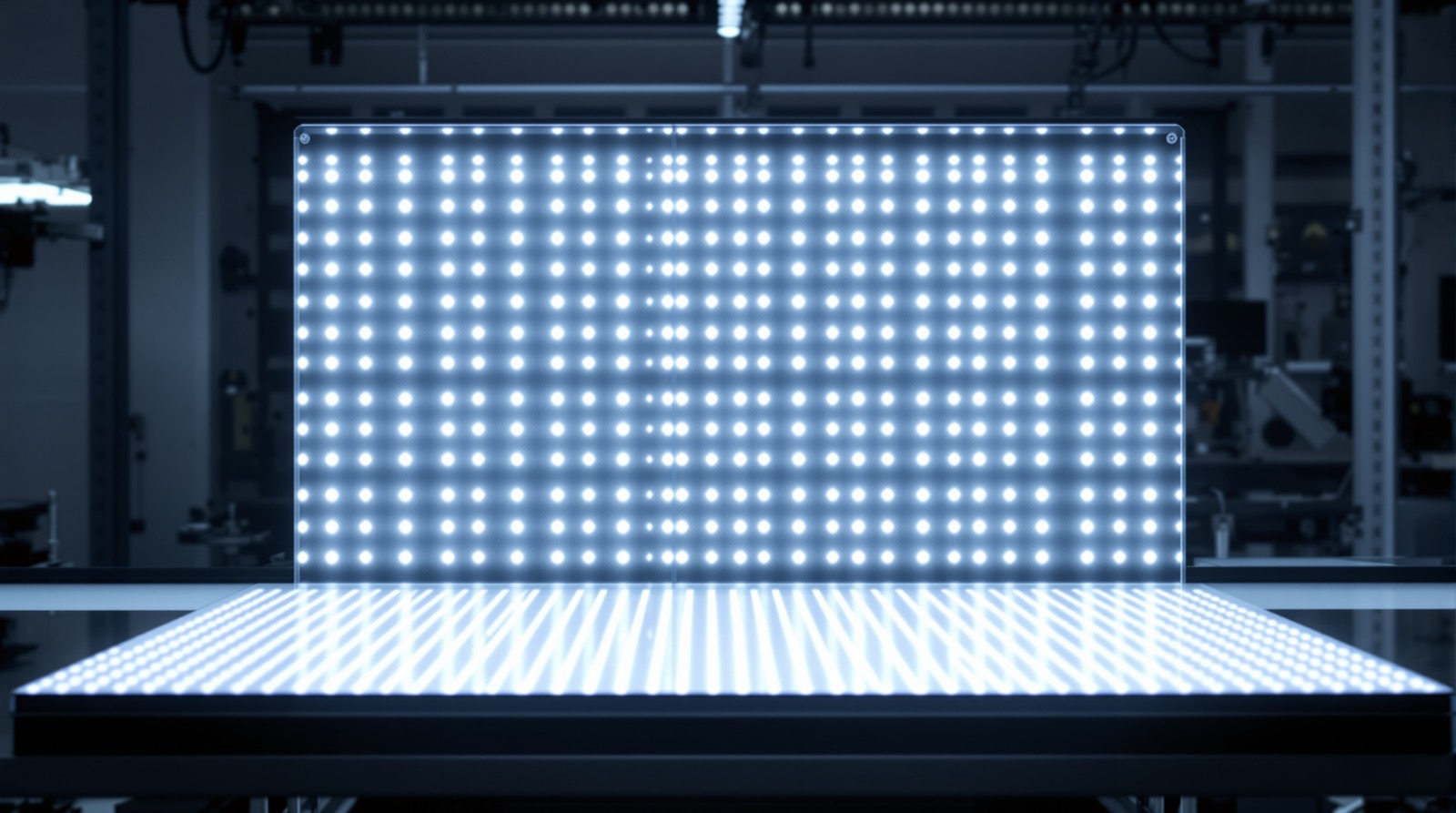

Acrylic lamps LED fixtures custom

Lamps & Fixtures

Complete lamps and fixtures made to order.

Project Gallery

LED strip cover diffuser
LED profile diffuser

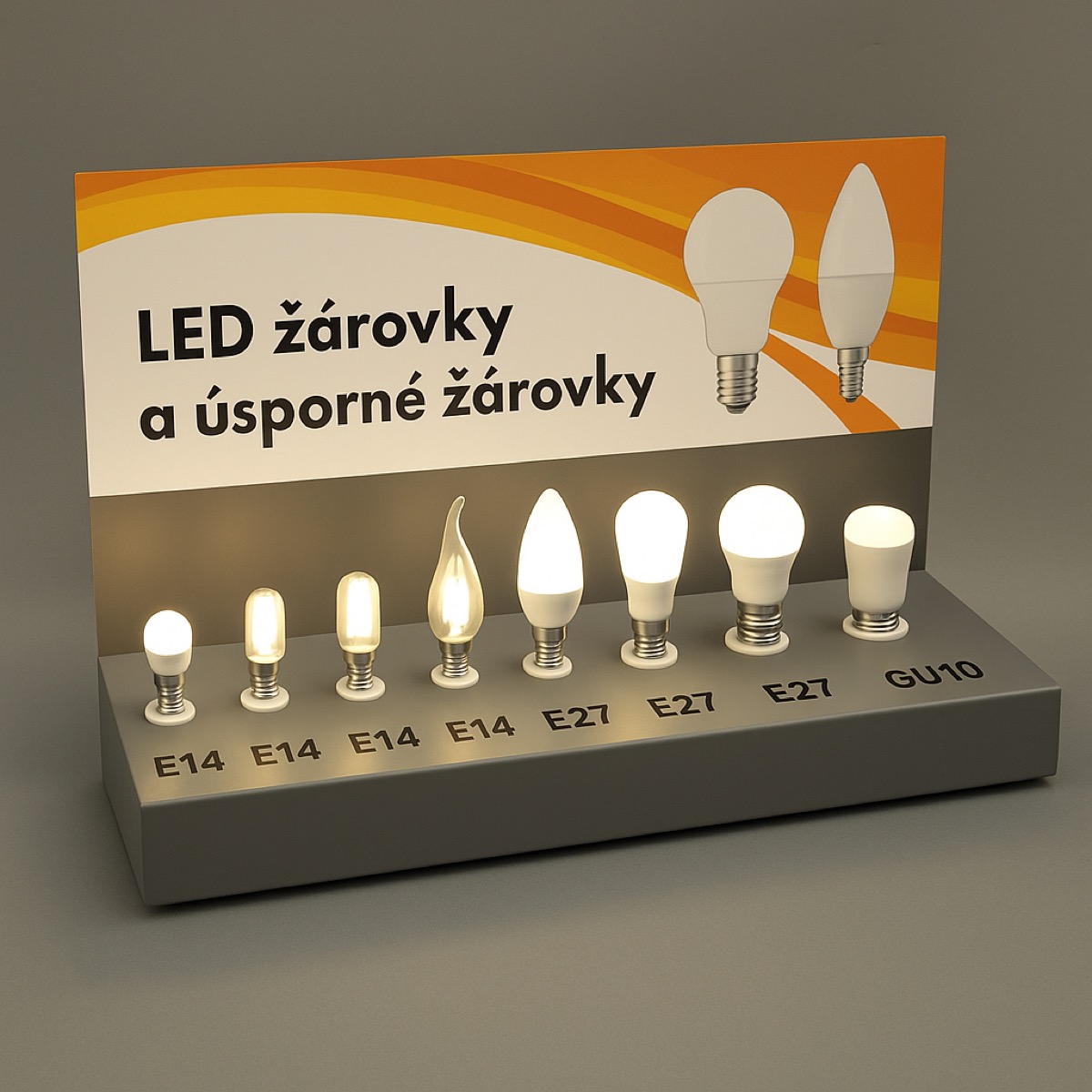

Ceiling fixture shade
Pendant lamp shade

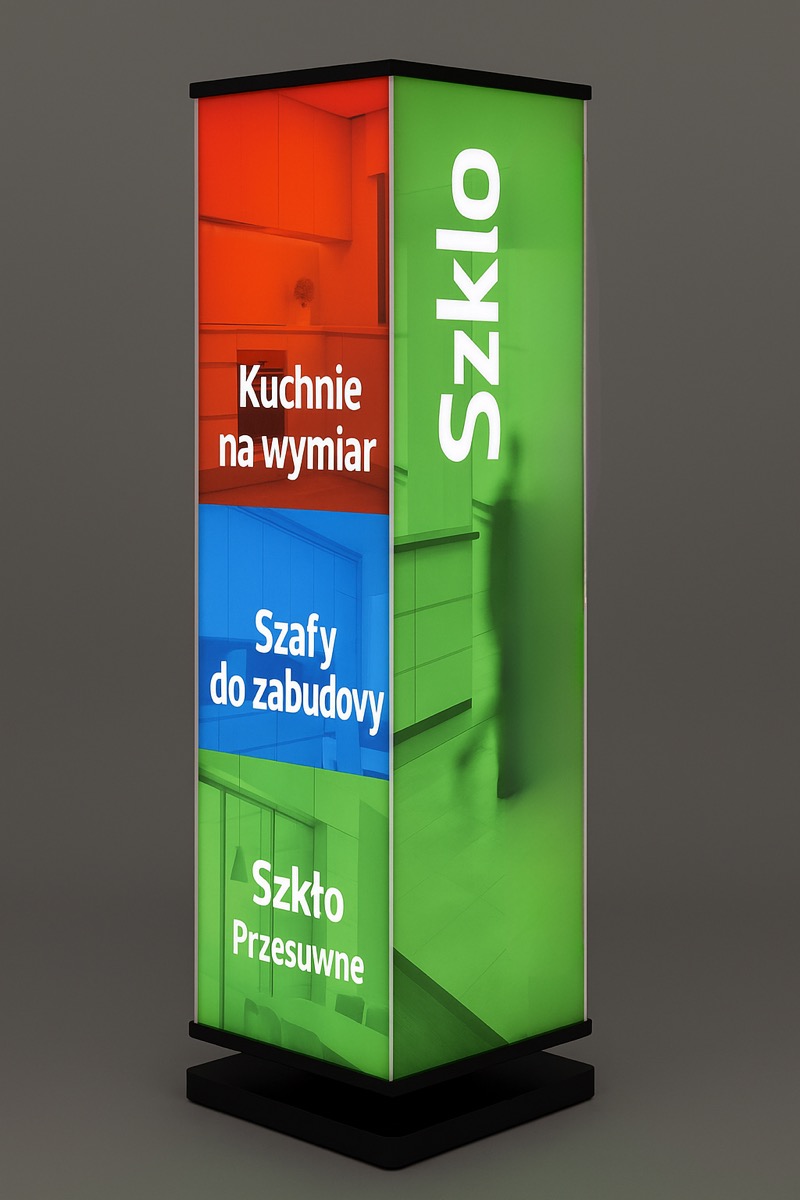

Backlit advertising panel
Illuminated information panel
LED office lamp
Industrial lighting fixture

Technical Specifications

Materials
PMMA (acrylic), polycarbonate (for higher resistance)
Thickness
1-10mm
Diffusion
30% (light), 50% (medium), 70% (strong), opal (full)
Transmittance
85-92% (for 2mm clear)
UV Resistance
10+ years without yellowing (PMMA)
Dimensions
Custom (max 2100x3100mm)
Finish
Polished, matte, satin
Mounting
Snap-in, slide-in, glued

Applications

🏢

Office Lighting

🏭

Industrial Lighting

🛍

Retail Lighting

🪑

Furniture Lighting

📢

Backlit Advertising

✨

Decorative Lighting

🚨

Emergency Lighting

🏛

Architectural Lighting

Ordering Information

Pricing

Starting from €10 per light guide. Custom LED solutions from €50. Quote within 24 hours.

Lead Times

Prototypes: within 48h. Small runs: 3-5 business days. Large series: up to 15 business days.

Shipping

EU-wide delivery via DPD, DHL, GLS. Worldwide shipping on request. Careful packaging for fragile components.

Minimum Order

Custom one-off pieces: min. 1 unit. Series production: from 50 units (better unit pricing).

Manufacturing Tolerances

CNC milling: ±0.05mm. Laser cutting: ±0.1mm. Bending: ±0.5mm. Assembly: ±0.5mm.

Standards & Compliance

Fire class DIN 4102 B1/B2. CE marking. REACH/RoHS compliant. EN 13501-1 Euroclass available for PC.

Frequently Asked Questions

What diffusion level should I choose?
30% - when light source is visible, 50% - compromise, 70% - when source is hidden, opal - full diffusion.
What thickness should I use for LED covers?
2-3mm for standard applications, 5mm for demanding ones.
Do you offer LED installation in covers?
No, but we can recommend partners or prepare for installation.
What sizes are available?
Standard profiles 1m, 2m, 3m. Custom up to 3m.
Can you mill grooves for LED strips?
Yes, we mill grooves 8-12mm wide for LED strips.
How much do LED elements cost?
Starting from €10 per light guide. Custom LED solutions from €50. Quote within 24 hours.
What is the lead time for LED elements?
Prototypes within 48 hours. Small production runs 3-5 business days. Large series up to 15 business days.
Do you ship LED elements internationally?
Yes, EU-wide delivery via DPD, DHL, and GLS couriers. Worldwide shipping on request. Careful packaging for fragile components.
